Index tool for machining centre

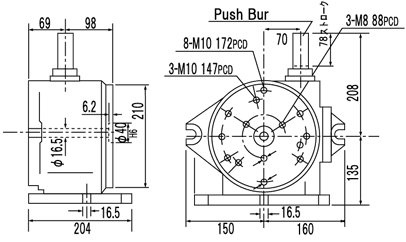

FDM-200-04
| Table diameter | 210φ |
| One push an angle | 90° |
| Smallest indexable angle | 5° |
 One push=78mmSmallest indexable angle=5° Through-hole depth=16.5mm Orientation as installed=Vertical or Horizontal Weight=43kg Key way width 16 |
|
 |  |
|---|
 |
Table diameter | One push an angle | 1°indexable angle | Model |
|---|---|---|---|---|
| 170φ | 45° |  FDM-150 |
||
| 210φ | 15° | FDM-200 |
||
| 〇 | FDM-200-360 |
|||
| 90° | FDM-200-04 |
|||
| 230φ | 45° | FDM-230 |
||
| 〇 | FDM-230-360 |
|||
| 310φ | 45° | FDM-300 |
||
| 〇 | FDM-300-360 |
